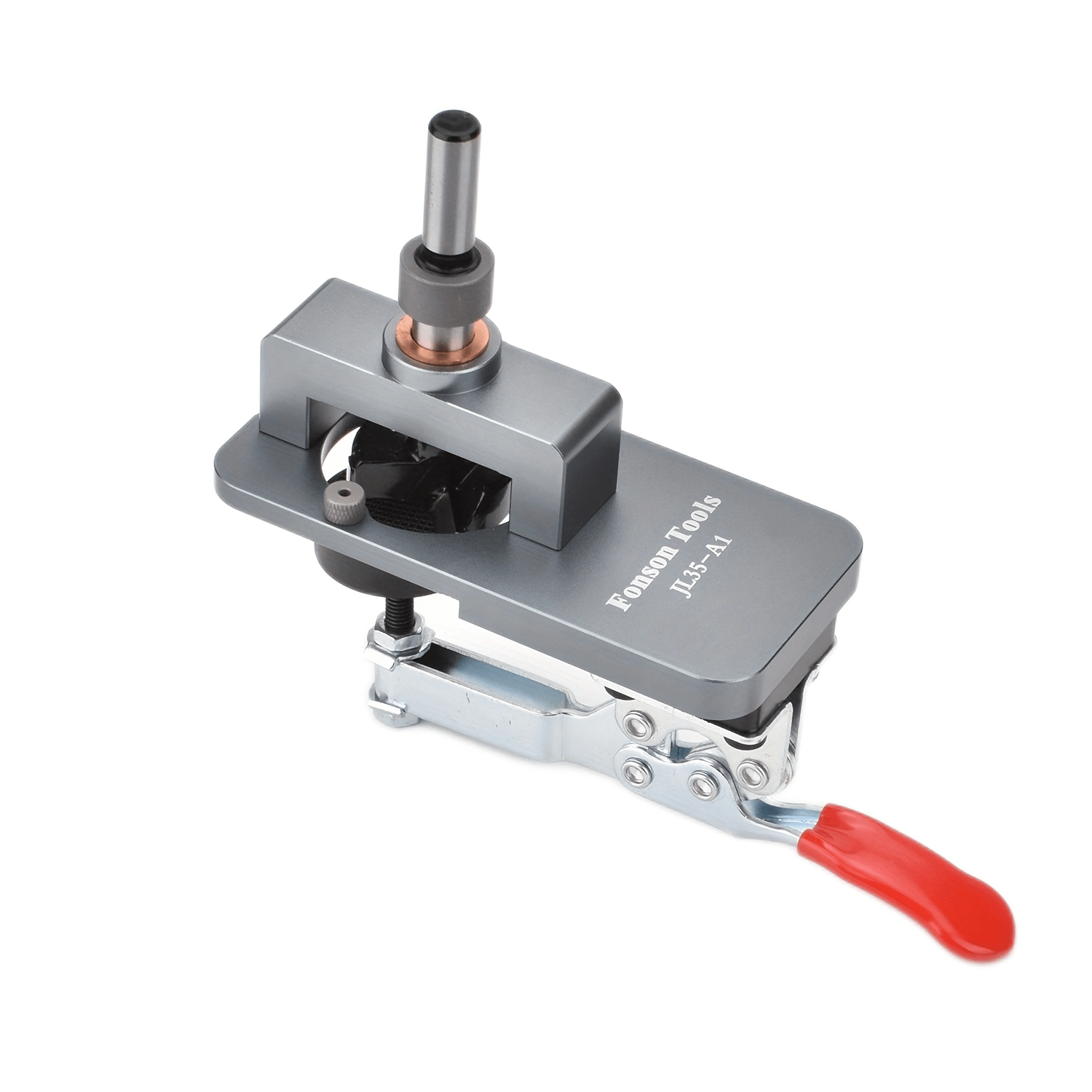

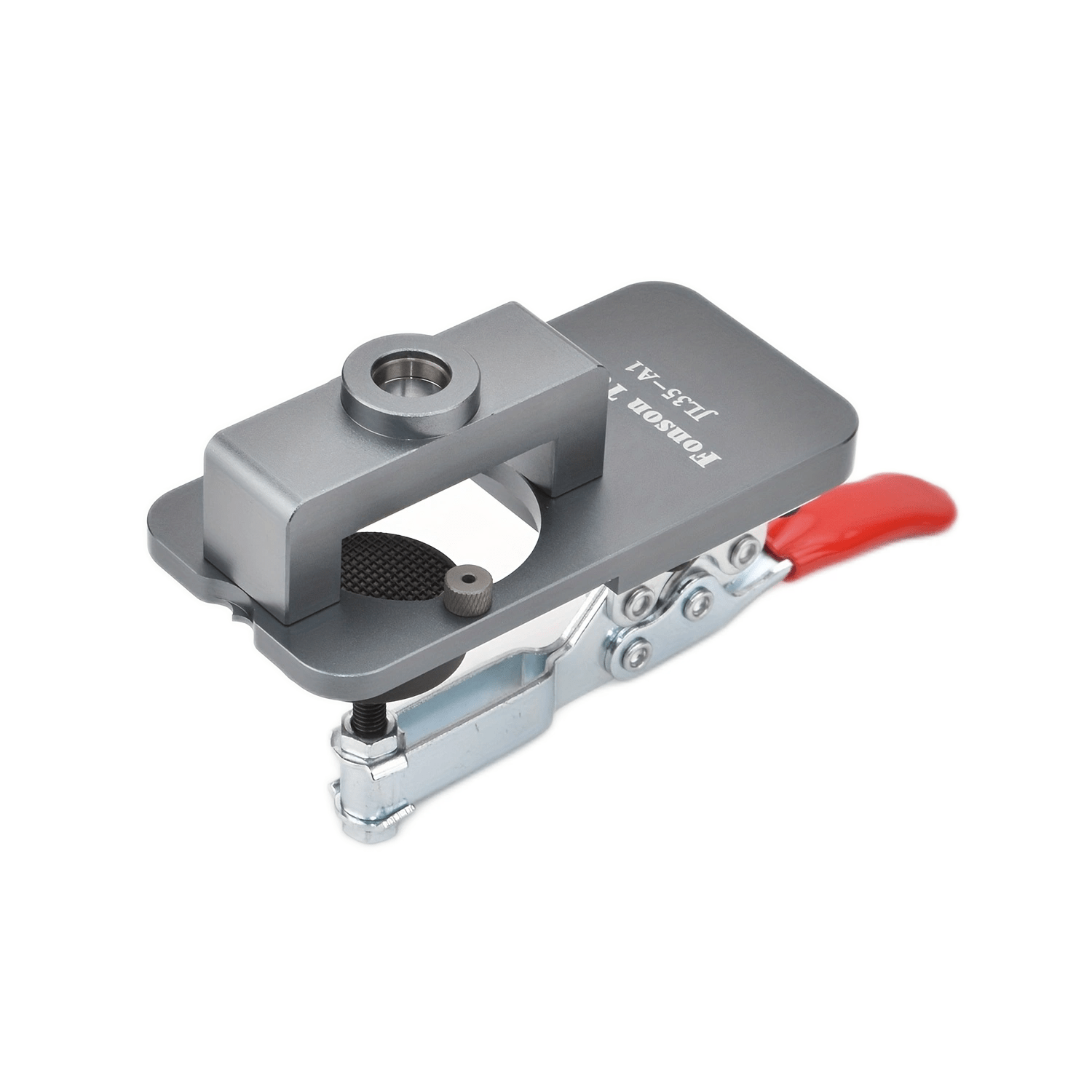

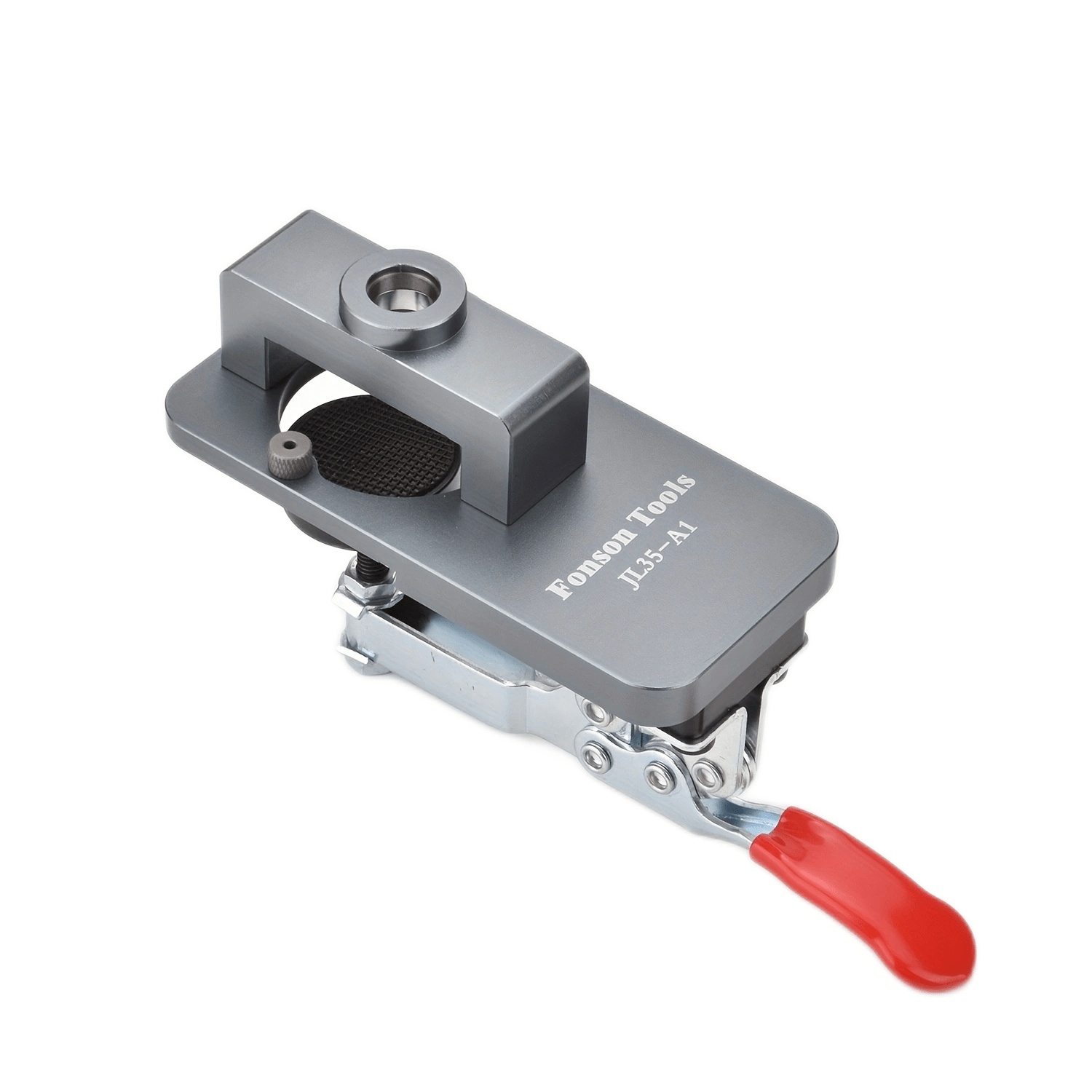

35 mm Hinge Drilling Template for Cabinet Installation

Achieve precise and consistent hinge placements with a robust 35 mm drilling template made from aluminum. This template securely attaches to your workpiece, facilitating accurate drilling for concealed hinges in cabinetry and kitchen doors. It's designed for woodworking tasks and regular use in workshops or DIY projects.

Benefits

• Accurate 35 mm Drill Guidance: Tailored for concealed hinges, ensuring uniform and clean hinge holes.

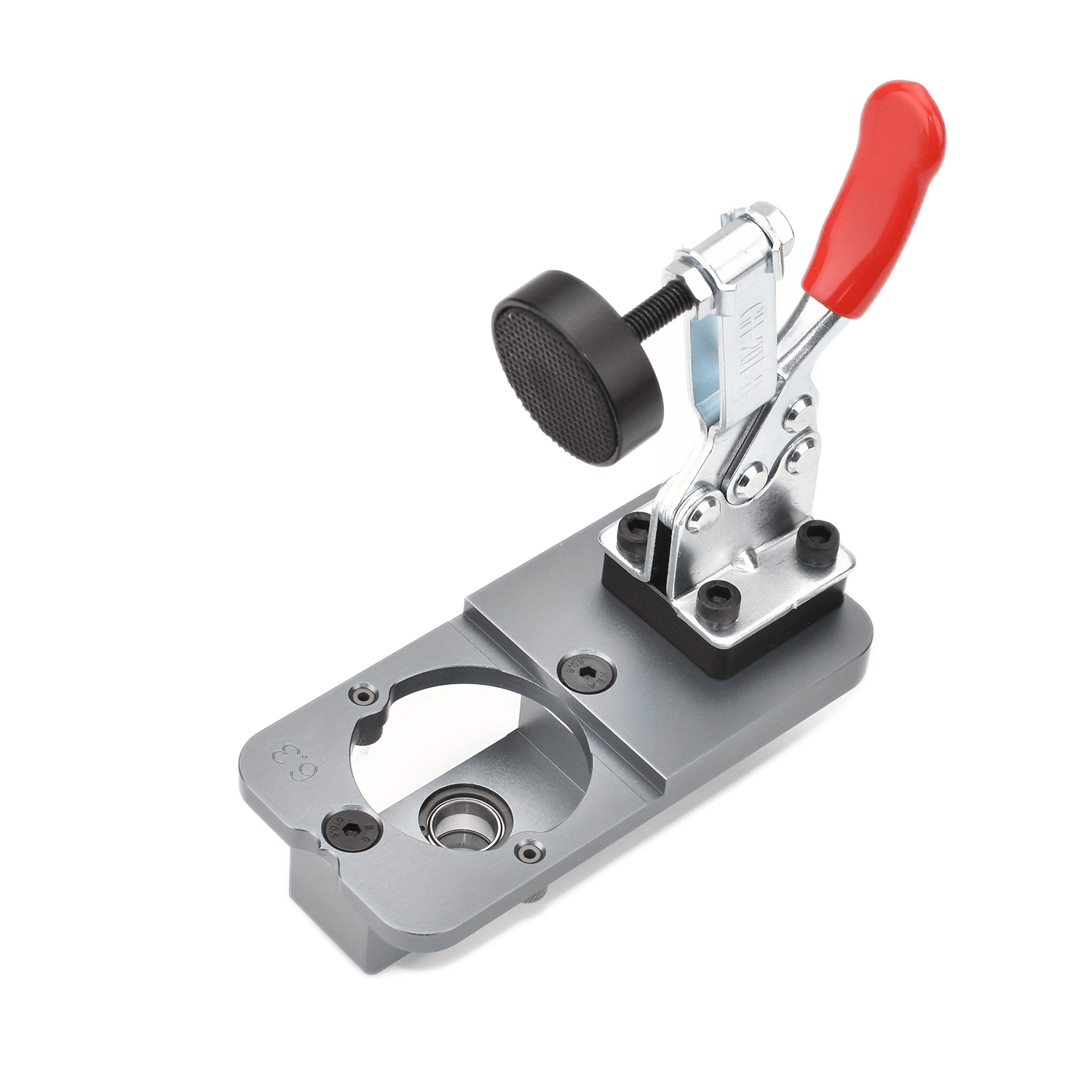

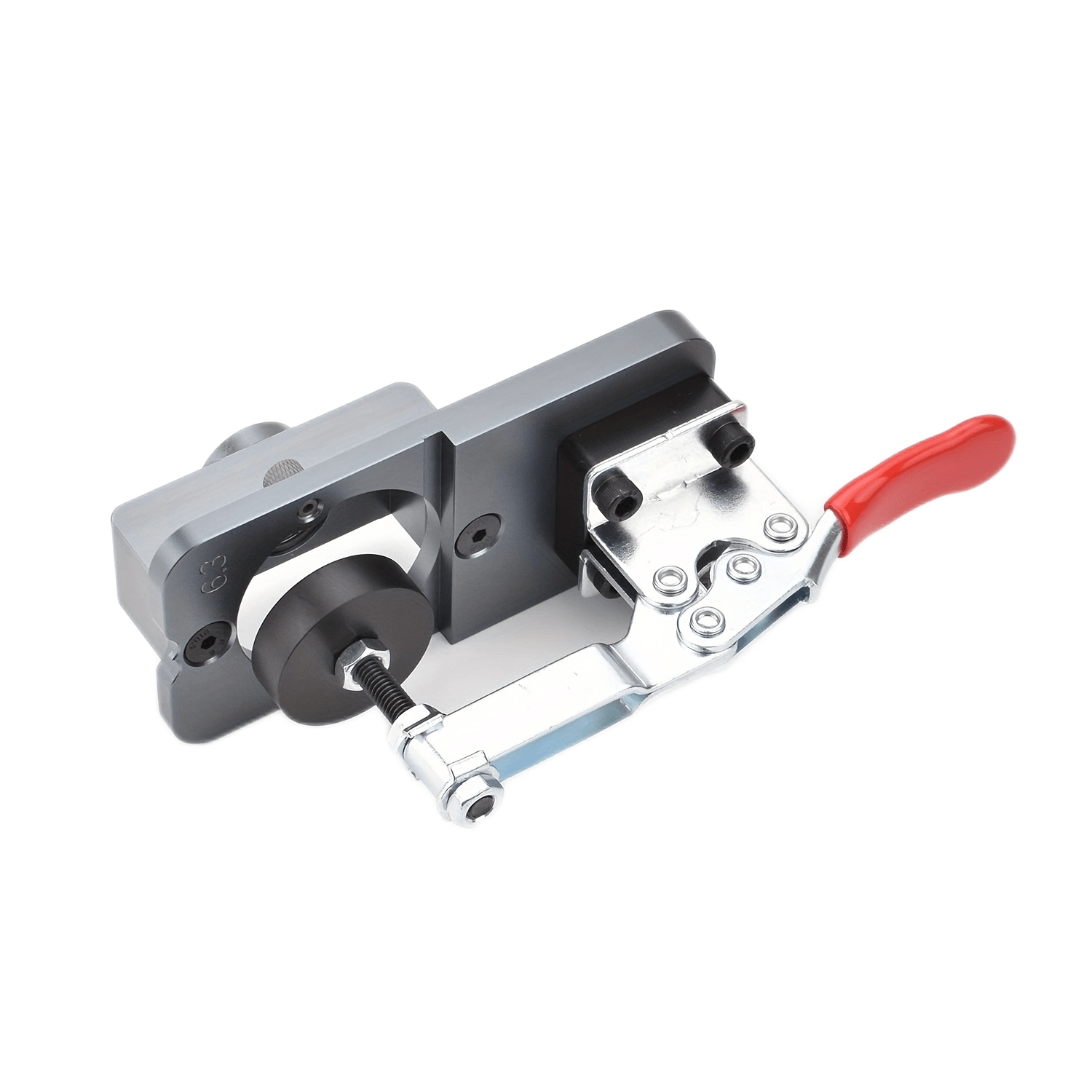

• Stable Quick-Clamp Mechanism: Secures the workpiece effectively, minimizing slippage during drilling.
• Durable Aluminum Construction: Maintains its shape, ideal for frequent use in assembly and woodworking tasks.
• Ready to Use: Comes with a 35 mm drill bit, a small drill bit, and tool accessories for a swift start.

Inspiration / Use-Cases

This drilling template is perfect for anyone looking to enhance their woodworking skills. Whether you're a hobbyist working on home improvement projects or a professional preparing cabinetry, this tool streamlines the process of hinge installation, making your tasks easier and more efficient.

Technical Specifications

• Product Type: Concealed hinge drilling template
• Material: Aluminum alloy, metal
• Application: Woodworking, furniture assembly, door hinge installation
• Drill Diameter: 35 mm

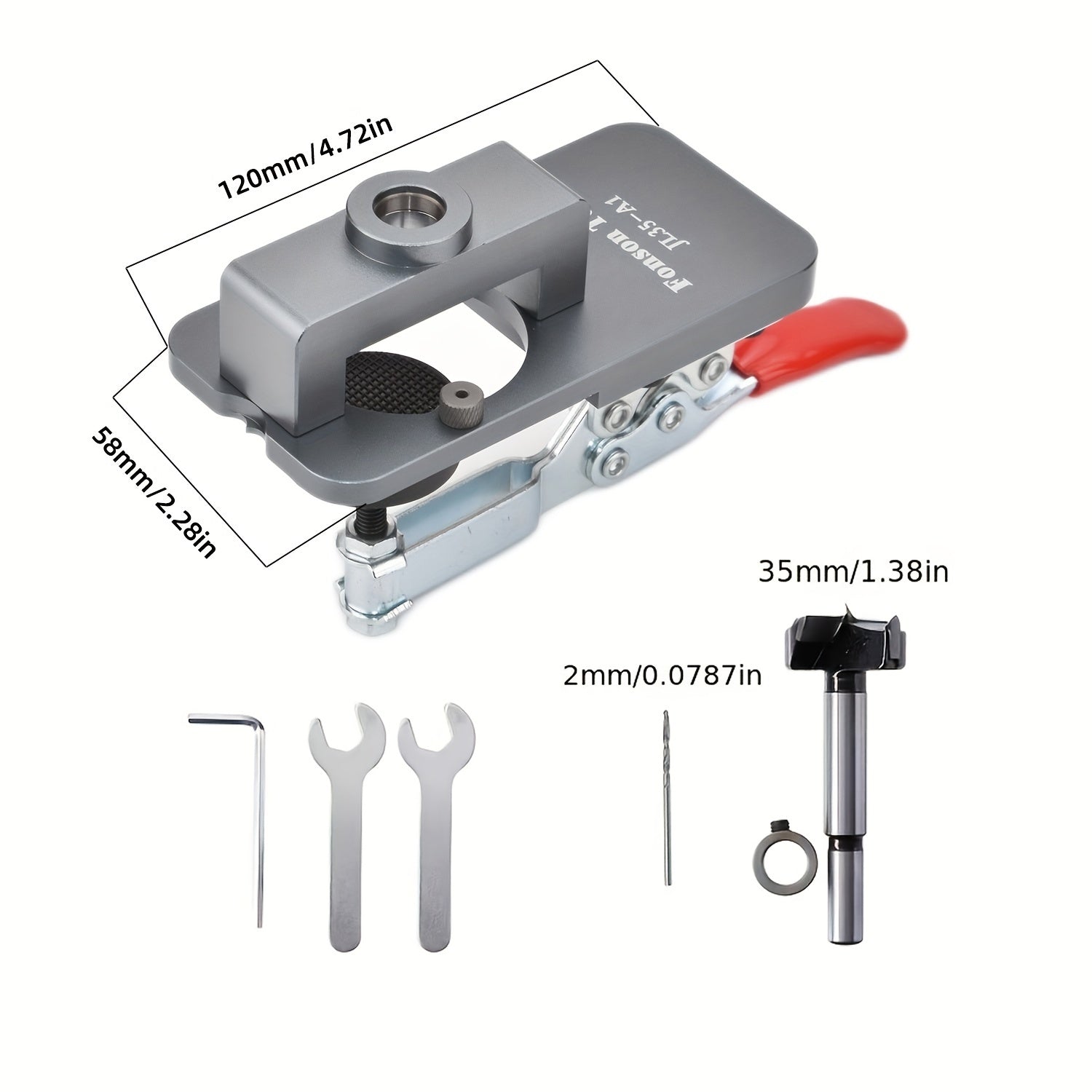

• Tool Length: Approximately 120 mm
• Tool Width: Approximately 58 mm

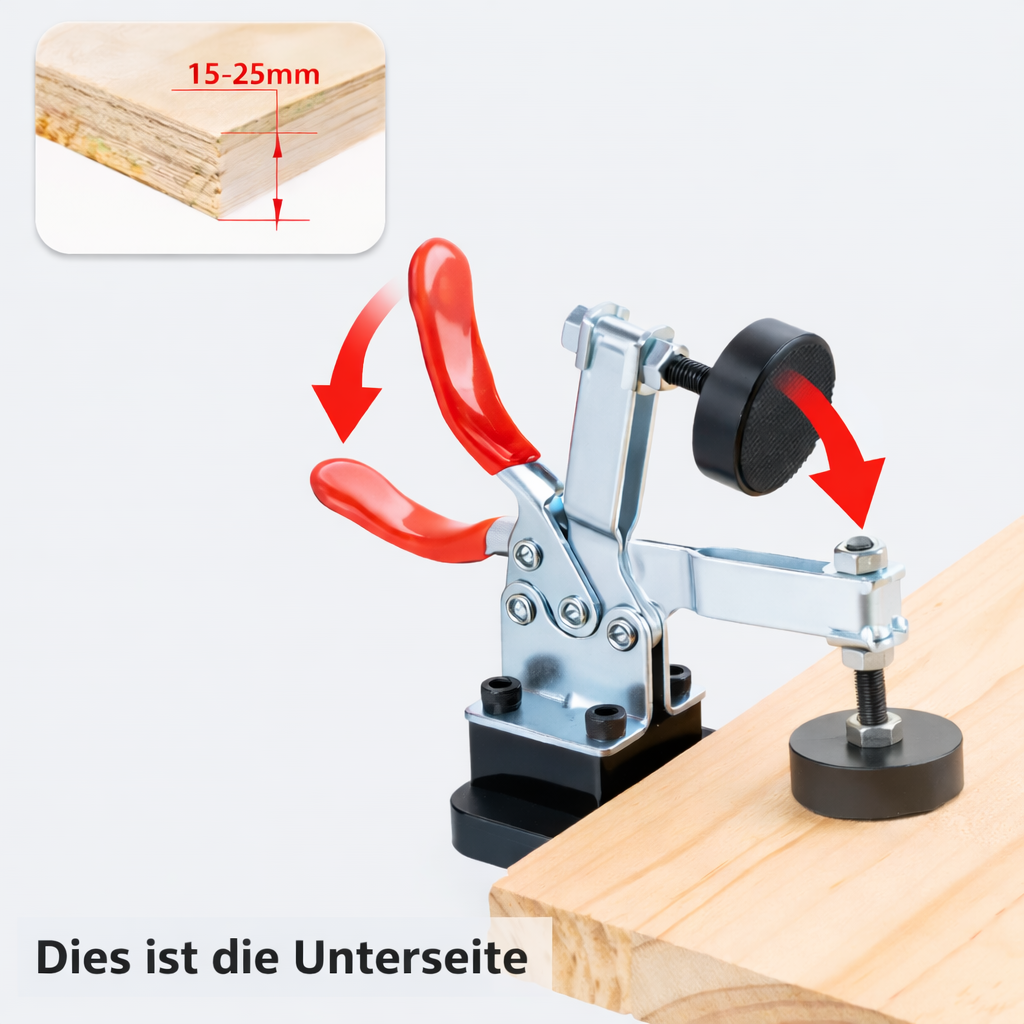

• Suitable Material Thickness: Approximately 15–25 mm
• Power Source: Manual, no electricity required

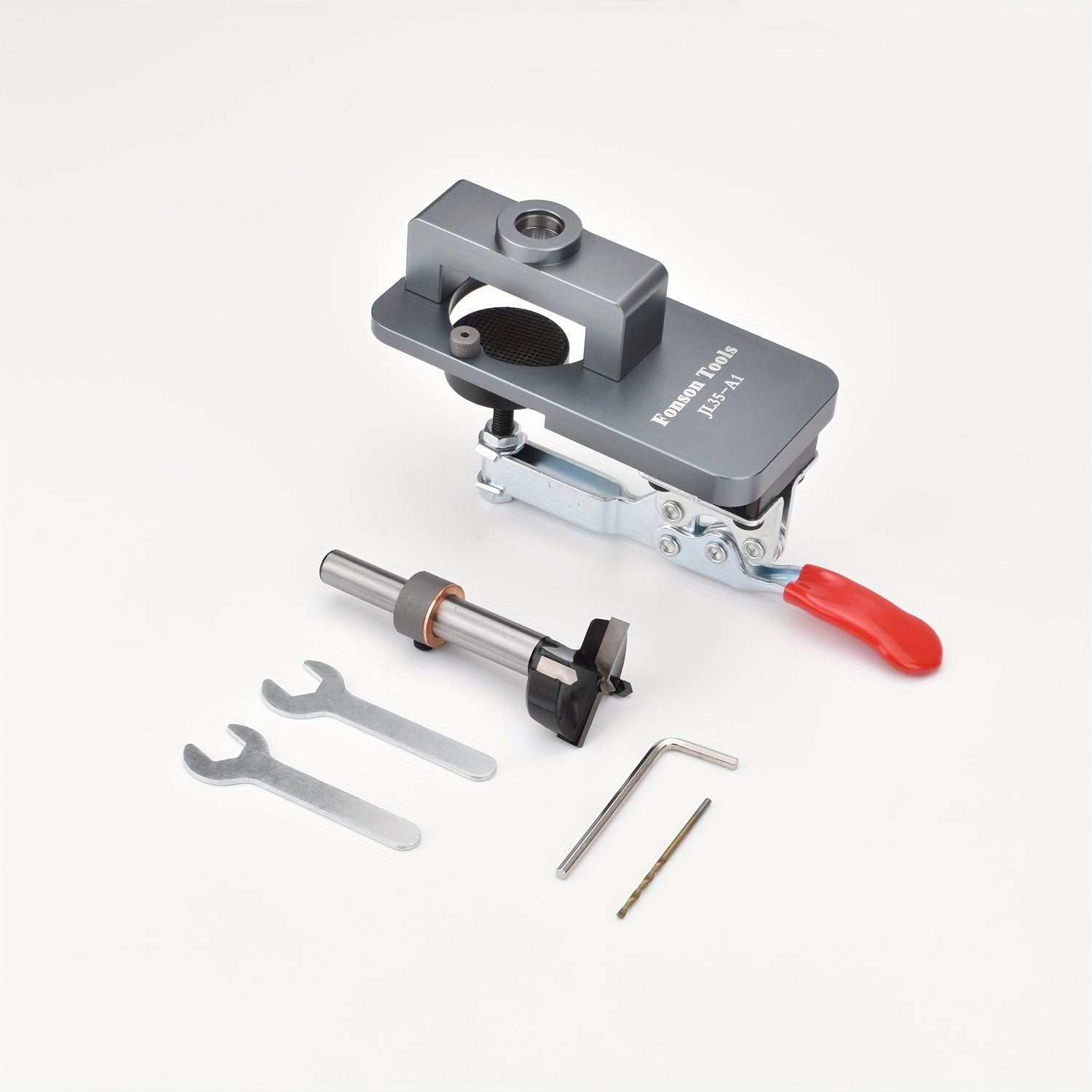

• Accessories: 35 mm Forstner bit, small bit approximately 2 mm, hex key, 2 keys, spacer ring

Application

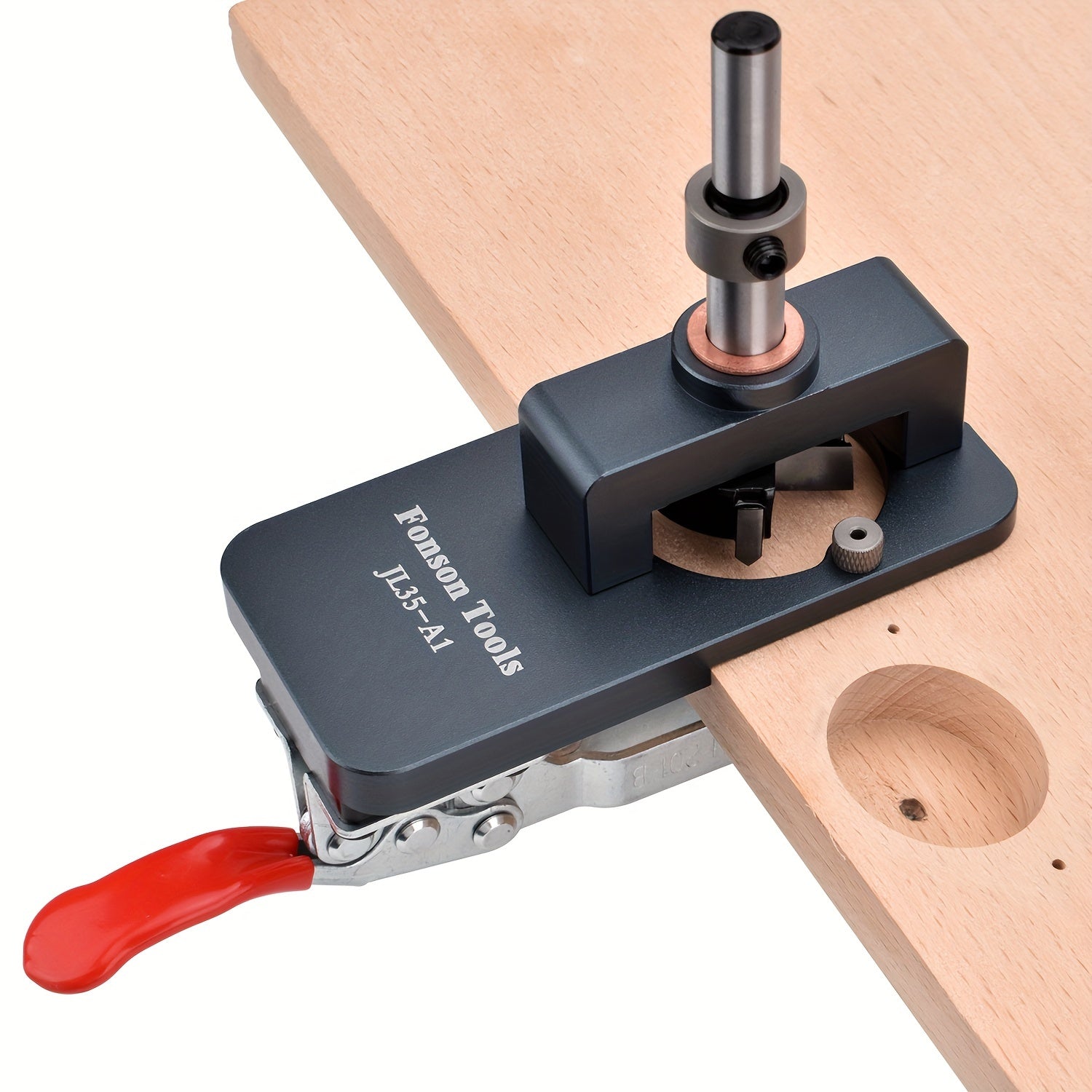

1. Position the template at the desired location on the door or panel.
2. Tighten the quick-clamp to ensure the template is securely in place.
3. Insert the 35 mm drill bit and drill the cup hole evenly.
4. Remove the template and then install the hinge.
   Tip: Work at medium speed and apply consistent pressure to ensure a clean hole and minimize chipping at the edge.
